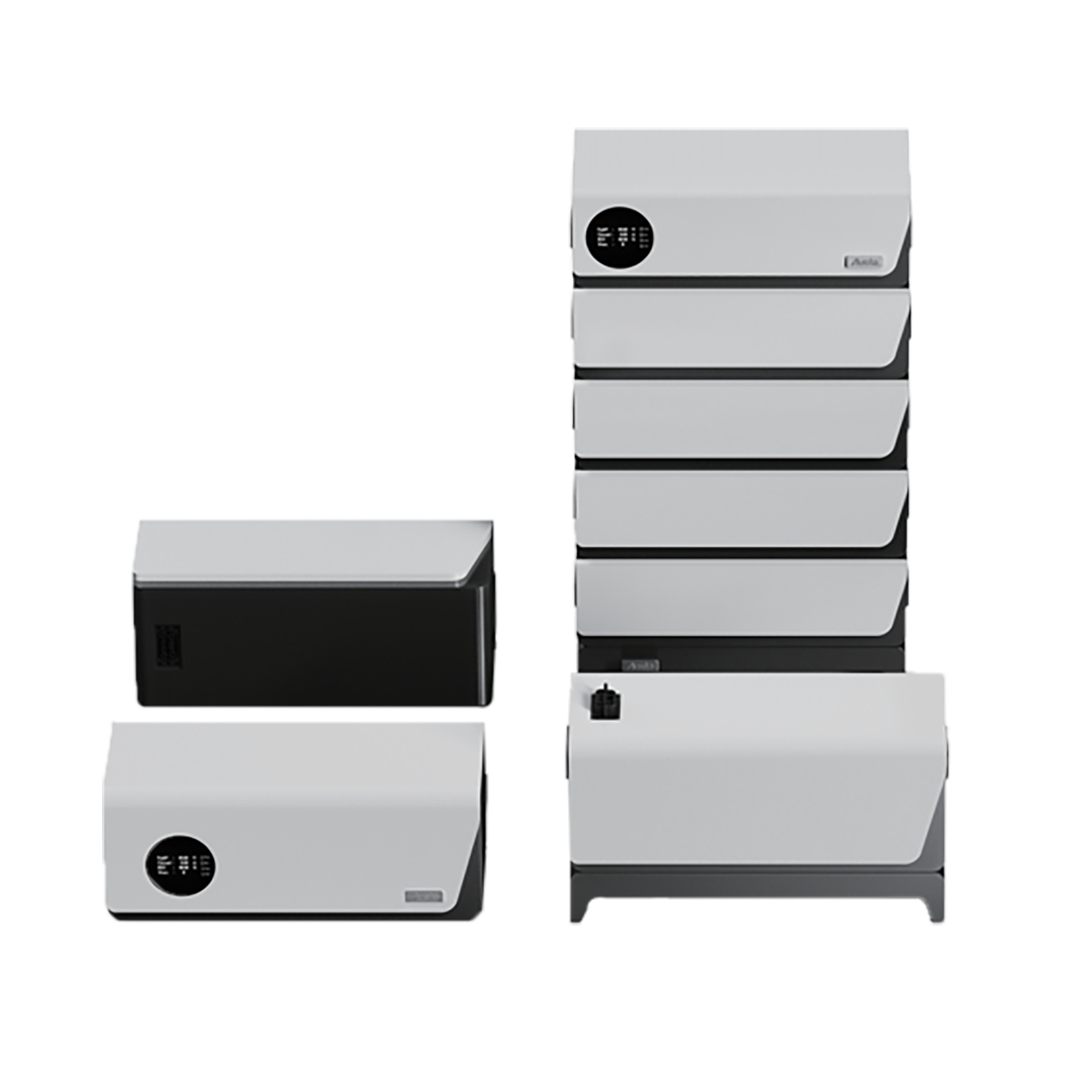

Visokonapetostna baterija AU-5/7.5/10/12.5/15kWh-SH

Modularna baterija AU51105-R
Enofazni omrežni pretvornik AU3K4K5K6K8K10K1P-G5
0 out of 5
( There are no reviews yet. )

Maks. polnilni tok: 27 A

Življenjski cikli: ≥6000

Ah zmogljivost: 27 Ah

Izdelano v Nemčiji

Visoka napetost 168-648 V

Visokozmogljive varnostne celice

Categories: , ,

Description

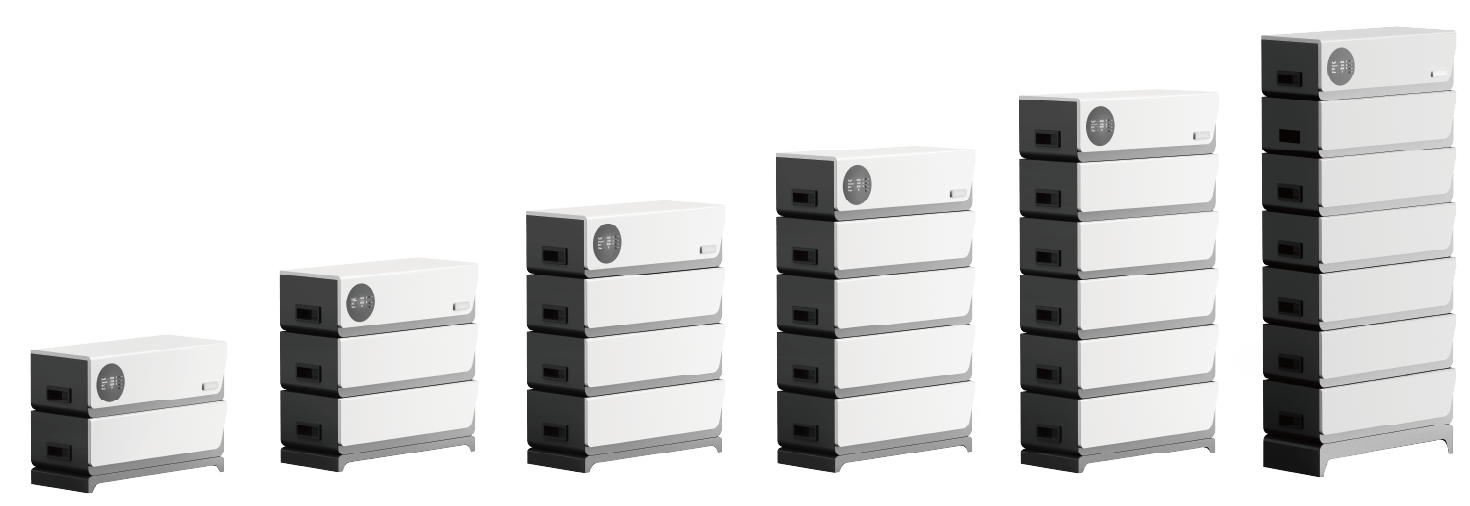

Battery Module 1 2 3 4 5 6
Dimersions (W xH x D mm) 600*418*250 600*598*250 600*778*250 600*858*250 600*1038*250 600*1218*250
Rated Capacity (kWh) 2.59 5.18 7.77 10.36 12.96 15.55
Available Capacity (KWh) 2.33 4.66 6.99 9.32 11.66 13.99
Battery Module(single pack) 96-2.59KWh
Cell Type IFP20100140A-27Ah
Cell Configuration 30S1P 60S1P 90S/1P 120S/1P 150S/1P 180S1P
Rated Voltage (V) 96 192 288 384 480 576
Operating Voltage (V) 84-108 168-216 168-216 336-432 420-540 504-648
Max.Continuous Discharge Current(A) 27(1C)
Max.Discharge Power(kW) 2.072 4.14 6.21 8.28 10.36 1244
Communication CAN
Charging Operating Temperature 0°C~50°C
Disharging Operating Temperature -20°C~50°C
Storage Temperature -20~45°C (≤1 month)  0~35 °C (≤1 year)  SOC:≥50%
Life Cycles ≥6000 @0.5C/0.5C,25°C
Altitude(m) ≤2000
Protection IP65
Cooling Natural
Installation Overlay landing
Rated Capacity Test conditions: cell voltage 2.5V-3.65V, 25±3°C temperature range, 0.5°C charge and discharge
Available Capacity Test conditions: 90% depth of discharge, 25±3°C temperature range, 0.5°C charge and discharge
